01 — Capture · Product group
ECHO & ROOKWide-area 10K perception sensors
Two sensors on one 10K architecture: 100 MP global-shutter capture at 10,000 × 10,000 pixels, feeding the same FORGE and IGNITE pipeline. The choice between them is optics strategy and environmental envelope — not capability.
- Interchangeable optics — ECHOCanon RF mount takes commercial off-the-shelf lenses, swapped in the field to match the mission.
- Sealed and SWaP-optimised — ROOKPurpose-built aerial optics in an environmentally sealed housing, at the lowest size and weight in the family.
- One 10K coreSame sensor grid, calibration and output on both — integrate once, choose per platform.

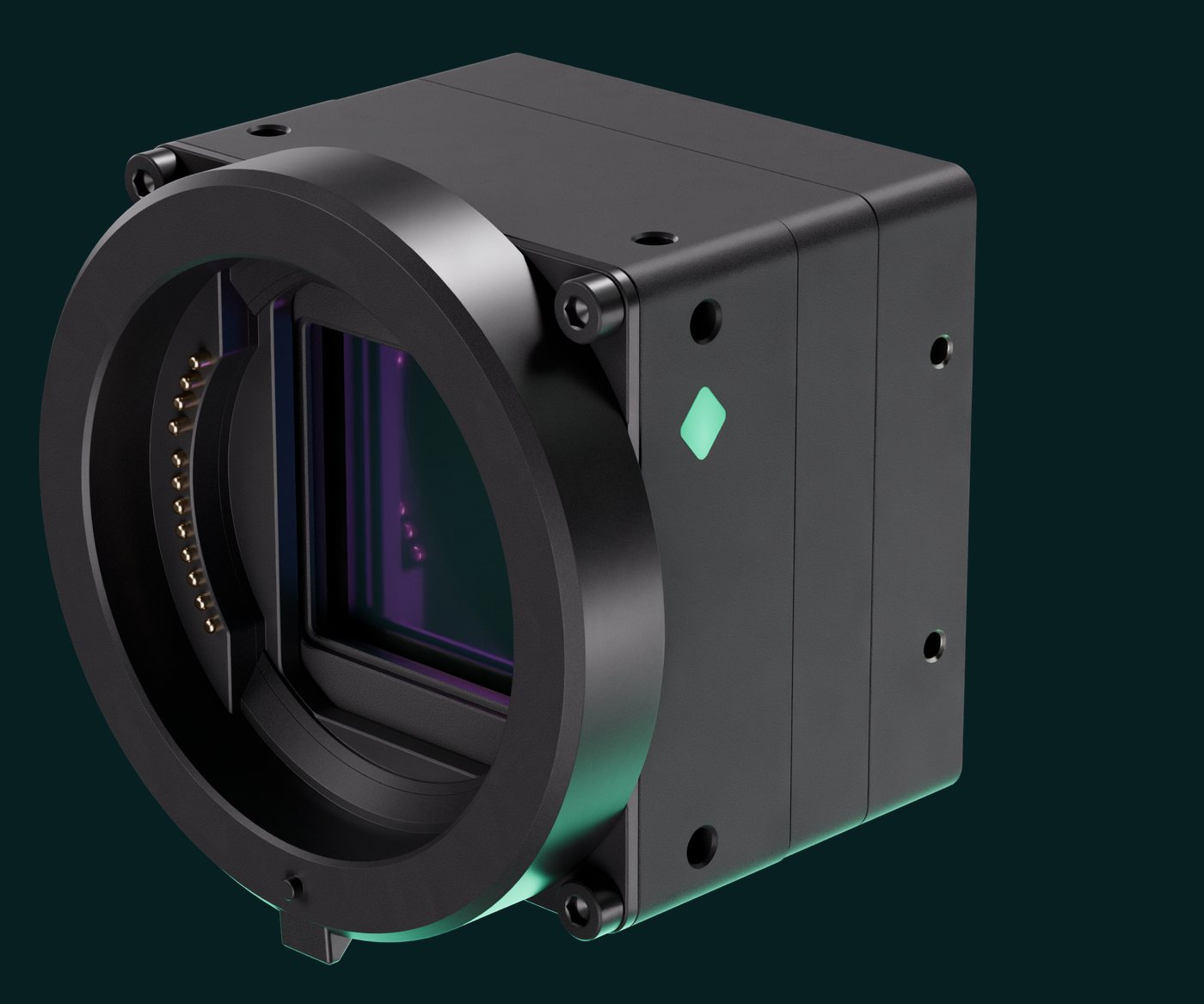

ECHO
Optimised for flexibility
Field-interchangeable commercial off-the-shelf optics
ECHO pairs the 10K core with a Canon RF mount, so the optics change with the mission — wide-area survey one sortie, standoff the next — without touching the integration. Lenses swap in the field in minutes.

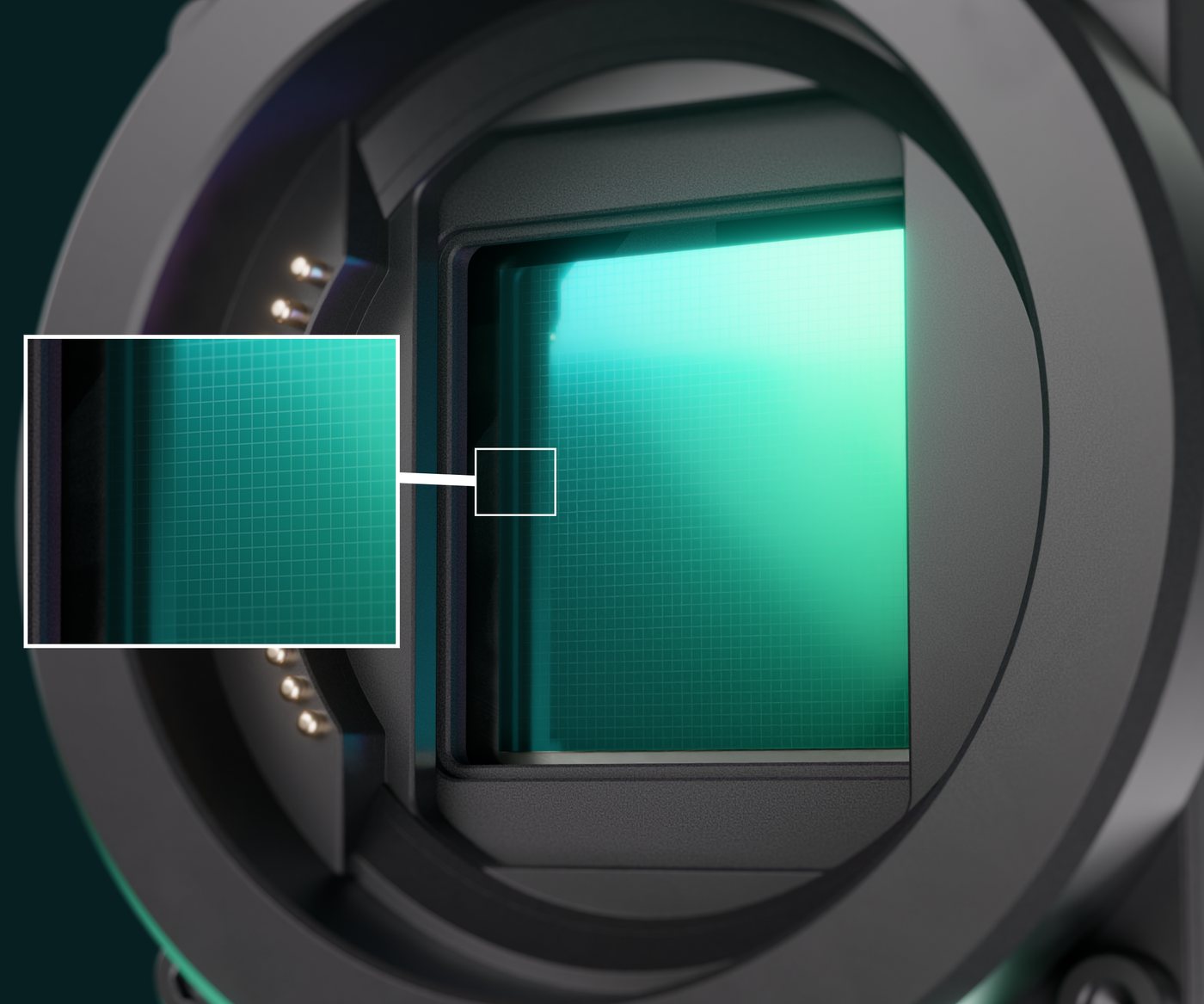

- 100 MP CMOS · 10K
- Full-frame capture at 10,000 × 10,000 px
- Global shutter
- All pixels exposed at once — no motion distortion

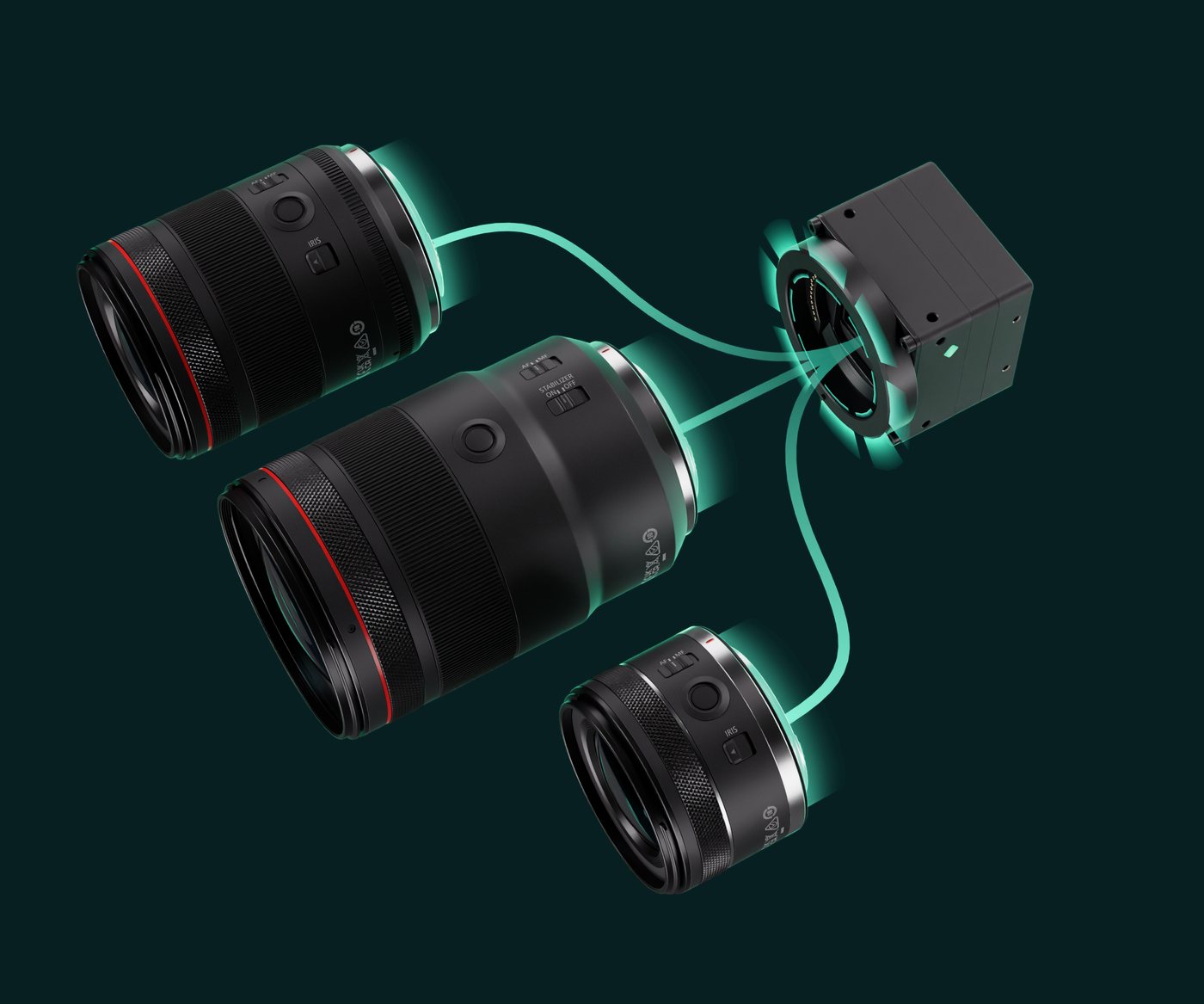

- Canon RF mount
- Field-swappable commercial off-the-shelf lenses
- 24 mm → 300 mm
- Wide-area to standoff by lens selection
- 60 × 60 × 65 mm
- Fits almost any UAV
- From 540 g
- Sensor body — optics per lens choice
Loads from Vimeo only when you play it. See our privacy & cookie notice.
Loads from Vimeo only when you play it. See our privacy & cookie notice.
ROOK · Release Sep ’26
Optimised for performance
Sealed, SWaP-optimised, purpose-built aerial optics
ROOK integrates the same 10K core behind fixed optics engineered specifically for aerial work, in an environmentally sealed housing. It is the smallest and lightest sensor in the family — built for platforms where every gram counts and conditions are hostile.
- 100 MP CMOS · 10K
- Same full-frame core as ECHO

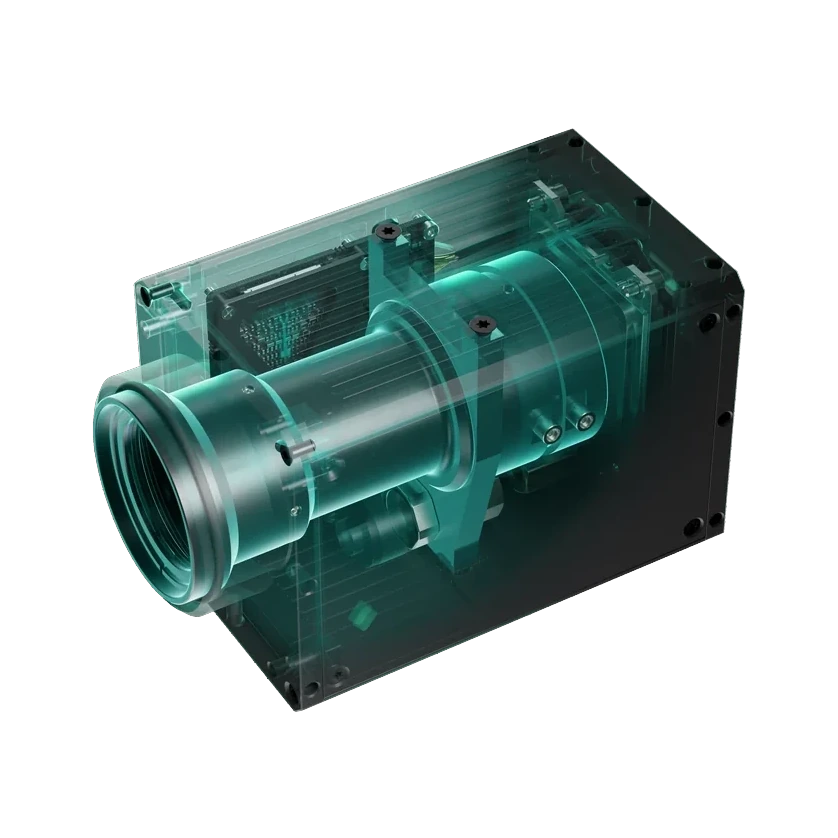

- Purpose-built optics
- Fixed lenses engineered for aerial applications [LENS SPECS]

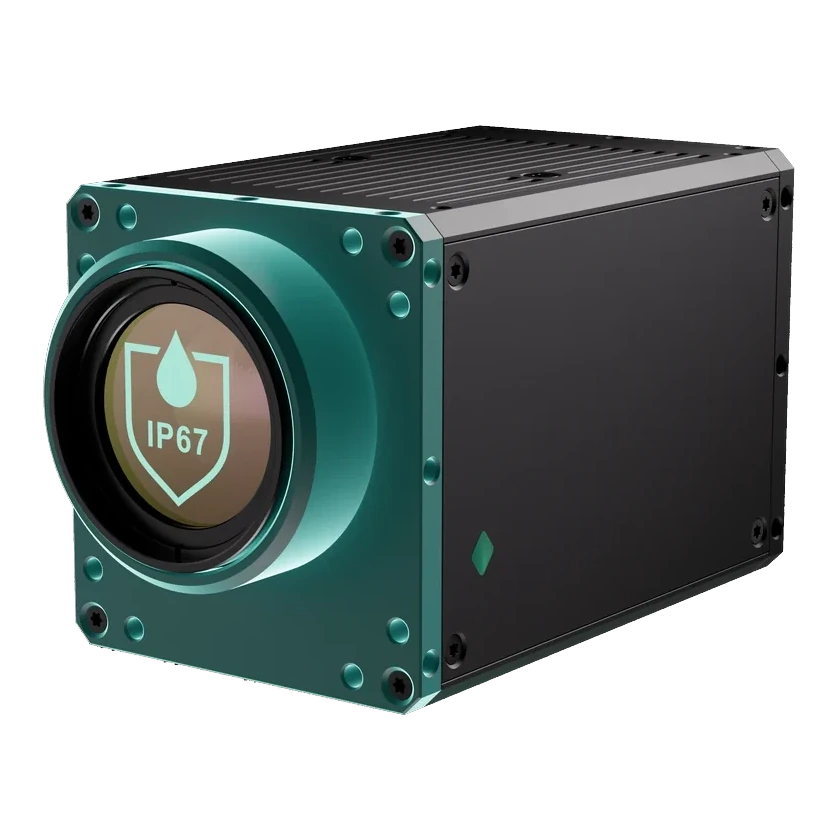

- Environmentally sealed
- Protected against dust, moisture and vibration [SEALING RATING]

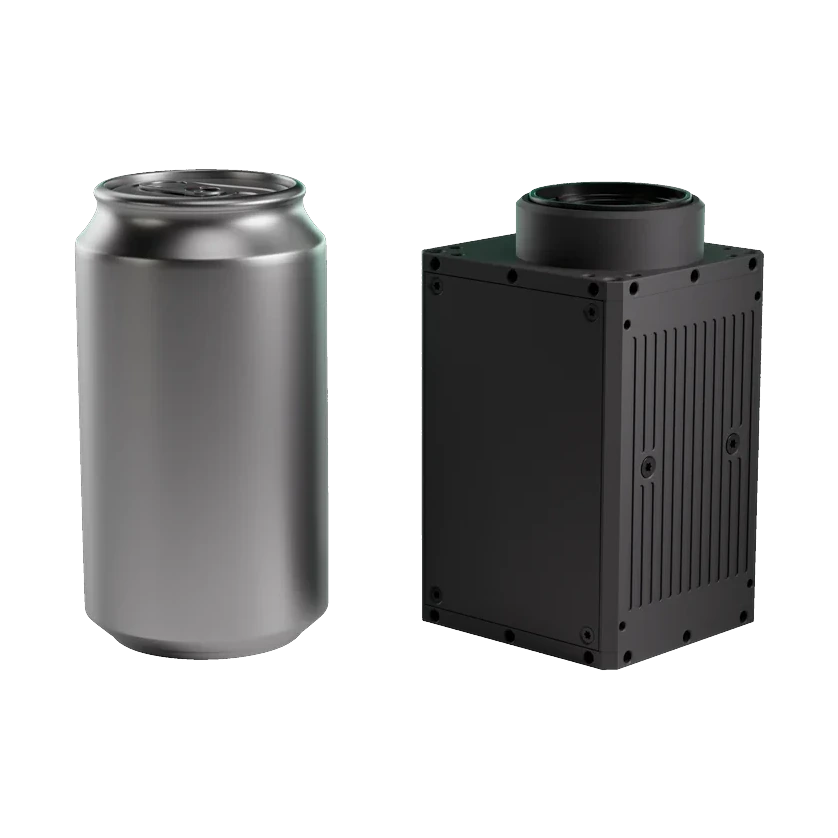

- From ±350 g
- Lowest size and weight in the family [CONFIRM DIMENSIONS]
Which sensor fits your platform?
Bring the airframe and mission profile — we will map the optics strategy with you.
